Система полива растений на основе Arduino своими руками

Система полива цветов и других растений позволяет автоматизировать процесс ухаживания за флорой как в домашних условиях, так и в условиях огородных и садовых участков. Благодаря такой системе может быть получен более качественный урожай и продлена жизнь растений за счет их своевременного полива.

https://alashed-media.s3.eu-north-1.amazonaws.com/wiki/digitrode/882-sistema-poliva-rasteniy-na-osnove-arduino-svoimi-rukami/images/sistema-poliva-rasteniy-na-osnove-arduino-2.jpg

Для тех, кто не профессионал в электронике и не хочет покупать дорогостоящее оборудование для полива растений, предлагается сделать такую систему самостоятельно с помощью платы Arduino.

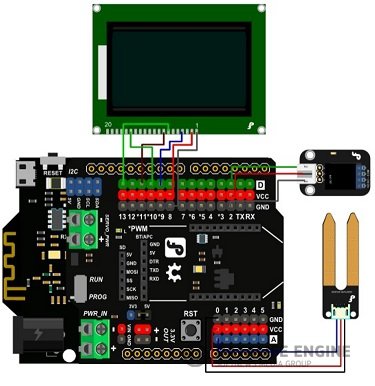

Данный проект основан на Arduino-подобной плате под названием Bluno компании DFRobot. Она имеет возможности беспроводного подключения по Bluetooth, поэтому при желании Вы можете контролировать полив растений с помощью мобильного телефона с поддержкой Bluetooth. Для измерения количества влаги в почве используется трехпроводной датчик влажности. Также для активации насоса, который будет обеспечивать подачу воды растениям, следует подключить модуль реле на 5 В. Помимо этого для отображения информации здесь применяется модуль OLED дисплея 2.7» 128x64. Схема подключения электрической части системы полива растений на основе Arduino представлена ниже.

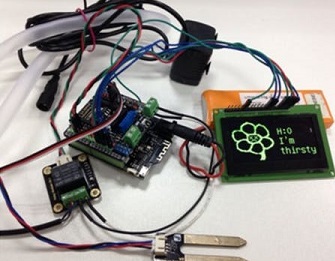

Значение H, отображаемое на OLED-дисплее, определяет количество влажности, обнаруженную датчиком в почве. Растение находится в нормальном состоянии, если значение H составляет от 300 до 800; растение испытывает недостаток воды, если значение H меньше 300. Датчик почвы измеряет и выдает результат в абсолютных единицах (от 0 до 800), а влажность, отображаемая в Bluno, выражается процентах, поэтому итоговая влажность равна ((влажность почвы) / 800 * 100%).

Ниже приведен код программы для работы системы автоматического полива растений на основе Arduino.

#include "Arduino.h"
#include "PlainProtocol.h"
#include "U8glib.h"

PlainProtocol myBLUNO(Serial,115200);

U8GLIB_NHD27OLED_BW u8g(13, 11, 10, 9);      // SPI: SCK = 13, MOSI = 11, CS = 10, A0 = 9

int Relay=2;
int Humid=0;
uint8_t draw_state=0;

// для формирования изображения
const uint8_t rook_bitmap[] PROGMEM = {

0x00,0x00,0x00,0x70,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFE,0x00,0x00,0x00,0x00,
0x00,0x00,0x07,0xFF,0xC0,0x00,0x00,0x00,
0x00,0x00,0x0F,0xC1,0xF0,0x00,0x00,0x00,
0x00,0x00,0x3E,0x00,0x78,0x06,0x00,0x00,
0x00,0x00,0x78,0x00,0x1C,0x1F,0x00,0x00,
0x00,0x00,0xF0,0x00,0x0E,0x7F,0xC0,0x00,
0x00,0x00,0xE0,0x00,0x06,0xF0,0xF8,0x00,
0x00,0x00,0xC0,0x00,0x07,0xE0,0x3C,0x00,
0x00,0x01,0xC0,0x00,0x07,0x80,0x0E,0x00,
0x00,0x01,0xC0,0x00,0x07,0x80,0x06,0x00,
0x00,0x01,0xC0,0x00,0x07,0x00,0x07,0x00,
0x00,0x01,0xC0,0x00,0x07,0x00,0x03,0x80,
0x0F,0xFF,0xC0,0x00,0x06,0x00,0x01,0x80,
0x1F,0x0F,0xE0,0x00,0x06,0x00,0x01,0xC0,
0x3C,0x00,0xF0,0x00,0x06,0x00,0x00,0xC0,
0x70,0x00,0x38,0x00,0x06,0x00,0x00,0xE0,
0x60,0x00,0x1C,0x00,0x0E,0x00,0x00,0x60,
0x60,0x00,0x0F,0x00,0x0C,0x00,0x00,0x60,
0x60,0x00,0x07,0x80,0x1C,0x00,0x00,0x60,
0xE0,0x00,0x03,0xFF,0xFE,0x00,0x00,0x60,
0xE0,0x00,0x01,0xFF,0xFF,0xE0,0x00,0x60,
0xE0,0x00,0x01,0xE0,0x0F,0xF0,0x00,0xE0,
0xE0,0x00,0x01,0xC0,0x00,0x78,0x01,0xE0,
0x60,0x00,0x01,0x9F,0x3E,0x3C,0x03,0xC0,
0x60,0x00,0x01,0x91,0x22,0x1E,0x1F,0x80,
0x70,0x00,0x01,0x80,0x00,0x1F,0xFE,0x00,
0x30,0x00,0x01,0x80,0x00,0x0F,0xFF,0xC0,
0x38,0x01,0xFF,0x80,0x00,0x0E,0x07,0xF0,
0x1C,0x1F,0xFF,0x8C,0x06,0x1E,0x00,0xF8,
0x1F,0xFC,0x07,0x8E,0x0E,0x3C,0x00,0x1C,
0x07,0xF0,0x03,0xC7,0xFC,0x78,0x00,0x1E,
0x01,0xC0,0x01,0xE1,0xF0,0xF0,0x00,0x0E,
0x03,0x80,0x01,0xF0,0x03,0xE0,0x00,0x0F,
0x07,0x00,0x00,0xFE,0x7F,0xF0,0x00,0x07,
0x06,0x00,0x00,0x3F,0xFE,0xF0,0x00,0x03,
0x06,0x00,0x00,0x0F,0xC0,0x38,0x00,0x07,
0x06,0x00,0x00,0x07,0x00,0x1C,0x00,0x07,
0x06,0x00,0x00,0x0E,0x00,0x1C,0x00,0x0E,
0x06,0x00,0x00,0x1C,0x00,0x0E,0x00,0x1E,
0x06,0x00,0x00,0x1C,0x00,0x0E,0x00,0x3C,
0x06,0x00,0x00,0x38,0x00,0x06,0x00,0x78,
0x07,0x00,0x00,0x38,0x00,0x06,0x01,0xF0,
0x07,0x80,0x00,0x70,0x00,0x07,0x87,0xC0,
0x01,0xE0,0x00,0xE0,0x00,0x07,0xFF,0x00,
0x00,0xF8,0x01,0xE0,0x00,0x07,0xFC,0x00,
0x00,0x7F,0xC7,0xC0,0x00,0x07,0x10,0x00,
0x00,0x1F,0xFF,0xE0,0x00,0x07,0x00,0x00,
0x00,0x00,0xFF,0xF0,0x00,0x0E,0x00,0x00,
0x00,0x00,0x00,0x7C,0x00,0x1E,0x00,0x00,
0x00,0x00,0x00,0x1F,0x00,0x3E,0x00,0x00,
0x00,0x00,0x00,0x07,0xE1,0xFE,0x00,0x00,
0x00,0x00,0x00,0x00,0xFF,0xFC,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xFE,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xEE,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xFC,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xFC,0x00,0x00,
0x00,0x00,0x00,0x00,0x03,0xB8,0x00,0x00,

};





const uint8_t rook_bitmap1[] PROGMEM = {



0x00,0x00,0x00,0x00,0x0E,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7F,0x00,0x00,0x00,
0x00,0x00,0x00,0x03,0xFF,0xE0,0x00,0x00,
0x00,0x00,0x00,0x0F,0x83,0xF0,0x00,0x00,
0x00,0x00,0x60,0x1E,0x00,0x7C,0x00,0x00,
0x00,0x00,0xF8,0x38,0x00,0x1E,0x00,0x00,
0x00,0x03,0xFE,0x70,0x00,0x0F,0x00,0x00,
0x00,0x1F,0x0F,0x60,0x00,0x07,0x00,0x00,
0x00,0x3C,0x07,0xE0,0x00,0x03,0x00,0x00,
0x00,0x70,0x01,0xE0,0x00,0x03,0x80,0x00,
0x00,0x60,0x01,0xE0,0x00,0x03,0x80,0x00,
0x00,0xE0,0x00,0xE0,0x00,0x03,0x80,0x00,
0x01,0xC0,0x00,0xE0,0x00,0x03,0x80,0x00,
0x01,0x80,0x00,0x60,0x00,0x03,0xFF,0xF0,
0x03,0x80,0x00,0x60,0x00,0x07,0xF0,0xF8,
0x03,0x00,0x00,0x60,0x00,0x0F,0x00,0x3C,
0x07,0x00,0x00,0x60,0x00,0x1C,0x00,0x0E,
0x06,0x00,0x00,0x70,0x00,0x38,0x00,0x06,
0x06,0x00,0x00,0x30,0x00,0xF0,0x00,0x06,
0x06,0x00,0x00,0x38,0x01,0xE0,0x00,0x06,
0x06,0x00,0x00,0x7F,0xFF,0xC0,0x00,0x07,
0x06,0x00,0x07,0xFF,0xFF,0x80,0x00,0x07,
0x07,0x00,0x0F,0xF0,0x01,0x80,0x00,0x07,
0x07,0x80,0x1E,0x00,0x01,0x80,0x00,0x07,
0x03,0xC0,0x3C,0xE0,0x71,0x80,0x00,0x06,
0x01,0xF8,0x79,0x10,0x89,0x80,0x00,0x06,
0x00,0x7F,0xF8,0x00,0x01,0x80,0x00,0x0E,
0x03,0xFF,0xF0,0x00,0x01,0x80,0x00,0x0C,
0x0F,0xE0,0x70,0x00,0x01,0xFF,0x80,0x1C,
0x1F,0x00,0x78,0xC0,0x19,0xFF,0xF8,0x38,
0x38,0x00,0x3C,0x60,0x31,0xE0,0x3F,0xF8,
0x78,0x00,0x1E,0x1F,0xE3,0xC0,0x0F,0xE0,
0x70,0x00,0x0F,0x00,0x07,0x80,0x03,0x80,
0xF0,0x00,0x07,0xC0,0x0F,0x80,0x01,0xC0,
0xE0,0x00,0x0F,0xFE,0x7F,0x00,0x00,0xE0,
0xC0,0x00,0x0F,0x7F,0xFC,0x00,0x00,0x60,
0xE0,0x00,0x1C,0x03,0xF0,0x00,0x00,0x60,
0xE0,0x00,0x38,0x00,0xE0,0x00,0x00,0x60,
0x70,0x00,0x38,0x00,0x70,0x00,0x00,0x60,
0x78,0x00,0x70,0x00,0x38,0x00,0x00,0x60,
0x3C,0x00,0x70,0x00,0x38,0x00,0x00,0x60,
0x1E,0x00,0x60,0x00,0x1C,0x00,0x00,0x60,
0x0F,0x80,0x60,0x00,0x1C,0x00,0x00,0xE0,
0x03,0xE1,0xE0,0x00,0x0E,0x00,0x01,0xE0,
0x00,0xFF,0xE0,0x00,0x07,0x00,0x07,0x80,
0x00,0x3F,0xE0,0x00,0x07,0x80,0x1F,0x00,
0x00,0x08,0xE0,0x00,0x03,0xE3,0xFE,0x00,
0x00,0x00,0xE0,0x00,0x07,0xFF,0xF8,0x00,
0x00,0x00,0x70,0x00,0x0F,0xFF,0x00,0x00,
0x00,0x00,0x78,0x00,0x3E,0x00,0x00,0x00,
0x00,0x00,0x7C,0x00,0xF8,0x00,0x00,0x00,
0x00,0x00,0x7F,0x87,0xE0,0x00,0x00,0x00,
0x00,0x00,0x3F,0xFF,0x00,0x00,0x00,0x00,
0x00,0x00,0x7F,0x80,0x00,0x00,0x00,0x00,
0x00,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x77,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x3F,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x3F,0x80,0x00,0x00,0x00,0x00,
0x00,0x00,0x1D,0xC0,0x00,0x00,0x00,0x00,



};



const uint8_t rook_bitmap2[] PROGMEM = {


0x00,0x00,0x00,0x70,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xFE,0x00,0x00,0x00,0x00,
0x00,0x00,0x07,0xFF,0xC0,0x00,0x00,0x00,
0x00,0x00,0x0F,0xC1,0xF0,0x00,0x00,0x00,
0x00,0x00,0x3E,0x00,0x78,0x06,0x00,0x00,
0x00,0x00,0x78,0x00,0x1C,0x1F,0x00,0x00,
0x00,0x00,0xF0,0x00,0x0E,0x7F,0xC0,0x00,
0x00,0x00,0xE0,0x00,0x06,0xF0,0xF8,0x00,
0x00,0x00,0xC0,0x00,0x07,0xE0,0x3C,0x00,
0x00,0x01,0xC0,0x00,0x07,0x80,0x0E,0x00,
0x00,0x01,0xC0,0x00,0x07,0x80,0x06,0x00,
0x00,0x01,0xC0,0x00,0x07,0x00,0x07,0x00,
0x00,0x01,0xC0,0x00,0x07,0x00,0x03,0x80,
0x0F,0xFF,0xC0,0x00,0x06,0x00,0x01,0x80,
0x1F,0x0F,0xE0,0x00,0x06,0x00,0x01,0xC0,
0x3C,0x00,0xF0,0x00,0x06,0x00,0x00,0xC0,
0x70,0x00,0x38,0x00,0x06,0x00,0x00,0xE0,
0x60,0x00,0x1C,0x00,0x0E,0x00,0x00,0x60,
0x60,0x00,0x0F,0x00,0x0C,0x00,0x00,0x60,
0x60,0x00,0x07,0x80,0x1C,0x00,0x00,0x60,
0xE0,0x00,0x03,0xFF,0xFE,0x00,0x00,0x60,
0xE0,0x00,0x01,0xFF,0xFF,0xE0,0x00,0x60,
0xE0,0x00,0x01,0xE0,0x00,0xF0,0x00,0xE0,
0xE0,0x00,0x01,0xC0,0x00,0x78,0x01,0xE0,
0x60,0x00,0x01,0x91,0x11,0x3C,0x03,0xC0,
0x60,0x00,0x01,0x8A,0x0A,0x1E,0x1F,0x80,
0x70,0x00,0x01,0x84,0x04,0x1F,0xFE,0x00,
0x30,0x00,0x01,0x8A,0x0A,0x0F,0xFF,0xC0,
0x38,0x01,0xFF,0x91,0x11,0x0E,0x07,0xF0,
0x1C,0x1F,0xFF,0x80,0x00,0x1E,0x00,0xF8,
0x1F,0xFC,0x07,0x81,0xF0,0x3C,0x00,0x1C,
0x07,0xF0,0x03,0xC2,0x08,0x78,0x00,0x1E,
0x01,0xC0,0x01,0xE4,0x04,0xF0,0x00,0x0E,
0x03,0x80,0x01,0xF0,0x03,0xE0,0x00,0x0F,
0x07,0x00,0x00,0xFE,0x7F,0xF0,0x00,0x07,
0x06,0x00,0x00,0x3F,0xFE,0xF0,0x00,0x03,
0x06,0x00,0x00,0x0F,0xC0,0x38,0x00,0x07,
0x06,0x00,0x00,0x07,0x00,0x1C,0x00,0x07,
0x06,0x00,0x00,0x0E,0x00,0x1C,0x00,0x0E,
0x06,0x00,0x00,0x1C,0x00,0x0E,0x00,0x1E,
0x06,0x00,0x00,0x1C,0x00,0x0E,0x00,0x3C,
0x06,0x00,0x00,0x38,0x00,0x06,0x00,0x78,
0x07,0x00,0x00,0x38,0x00,0x06,0x01,0xF0,
0x07,0x80,0x00,0x70,0x00,0x07,0x87,0xC0,
0x01,0xE0,0x00,0xE0,0x00,0x07,0xFF,0x00,
0x00,0xF8,0x01,0xE0,0x00,0x07,0xFC,0x00,
0x00,0x7F,0xC7,0xC0,0x00,0x07,0x10,0x00,
0x00,0x1F,0xFF,0xE0,0x00,0x07,0x00,0x00,
0x00,0x00,0xFF,0xF0,0x00,0x0E,0x00,0x00,
0x00,0x00,0x00,0x7C,0x00,0x1E,0x00,0x00,
0x00,0x00,0x00,0x1F,0x00,0x3E,0x00,0x00,
0x00,0x00,0x00,0x07,0xE1,0xFE,0x00,0x00,
0x00,0x00,0x00,0x00,0xFF,0xFC,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xFE,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xEE,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xFC,0x00,0x00,
0x00,0x00,0x00,0x00,0x01,0xFC,0x00,0x00,
0x00,0x00,0x00,0x00,0x03,0xB8,0x00,0x00,
};


void setup() {

    myBLUNO.init();
    pinMode(Relay, OUTPUT);

}


void draw0 (void)
{

   // команды для перерисовки изображения на экране
  u8g.drawBitmapP( 0,1, 8, 63, rook_bitmap);

  u8g.setFont(u8g_font_unifont);
  u8g.setPrintPos(72,24);
  u8g.print("H:");
  u8g.print(Humid);    // считывание значения влажности
  u8g.drawStr(72,40,"I'm ");
  u8g.drawStr(84,56,"happy");

 }

 void draw1 (void)
{

   // команды для перерисовки изображения на экране
  u8g.drawBitmapP( 0,1, 8, 63, rook_bitmap1);
  u8g.setFont(u8g_font_unifont);
  u8g.setPrintPos(72,24);
  u8g.print("H:");
  u8g.print(Humid);    //Read Moisure Sensor Value
  u8g.drawStr(72,40,"I'm ");
  u8g.drawStr(84,56,"happy");
 }
  void draw2 (void)
{

   // команды для перерисовки изображения на экране
  u8g.drawBitmapP( 0,1, 8, 63, rook_bitmap2);
  u8g.setFont(u8g_font_unifont);
  u8g.setPrintPos(72,24);
  u8g.print("H:");
  u8g.print(Humid);    //Read Moisure Sensor Value
  u8g.drawStr(72,40,"I'm ");
  u8g.drawStr(72,56,"thirsty");
 }

 void draw(void)
 {
   switch(draw_state)
   {
     case 0:draw0();break;
     case 1:draw1();break;
     case 2:draw2();break;
      default:
     draw0();
     break;
   }
 }


void loop()
{
    if (myBLUNO.available()) {
        if (myBLUNO.equals("RELAY")){
          digitalWrite(Relay,myBLUNO.read());

        }
         else if(myBLUNO.equals("HUMID")){
         myBLUNO.write("HUMID", Humid/8);
        }
    }

   static unsigned long HUMIDTimer=millis();
    if (millis() - HUMIDTimer >= 500) {
        HUMIDTimer=millis();
        Humid=analogRead(0);
      if(Humid>300)
      {
          draw_state++;
          if(draw_state>1)
          draw_state=0;
      }
      else if(Humid= 500) {
        OledTimer=millis();

       u8g.firstPage();
        do{
            draw();
        }
       while(u8g.nextPage());

    }
}
